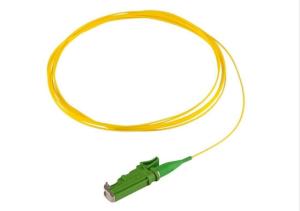

APC PVC 0.9mm E2000 Pigtail , Telecommunication Sc Pigtail Single Mode

Brand Name : J&K

Model Number : E2000/APC Pigtail

Place of Origin : SHENZHEN,CHINA

MOQ : 50PCS

Price : Negotiation

Payment Terms : L/C, T/T

Delivery Time : 3~5days

Packaging Details : PE bag

Application : FTTH FTTB FTTX Network

Product name : fiber optic pigtail

Jacket material : OFNP,PVC.LSZH

Operating temperature : -40~75 ℃

Durability : ≤0.2dB (1000 times)

Insertion loss : ≤0.20dB

Contact Now

E2000 APC 9 / 125 Singlemode Simplex fiber optic pigtail PVC LSZH 0.9mm

Features

  • Good exchangeability
  • High temperature stability
  • Low insertion loss and back reflection loss
  • Superior Quality Standard PC/UPC/APC Polishing

Applications

  • Local Area Networks(LANs)
  • Data Processing networks
  • Test Equipment
  • Premise installations.
  • Wide Area Networks(WANs)

Specifications

Mode SM MM
Polish UPC APC PC
Insertion Loss

Typical ≤0.2dB

Maximum ≤0.3dB

 ≤0.25dB
Return Loss ≥50dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Durability ≤0.2dB (1000 times)
Repeatability ≤0.1dB
Vibration ≤0.2dB (550Hz 1.5mm)
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)
Apex Offset 0μm ~ 50μm
Radius of Curvature 7mm ~ 25mm

APC PVC 0.9mm E2000 Pigtail , Telecommunication Sc Pigtail Single ModeAPC PVC 0.9mm E2000 Pigtail , Telecommunication Sc Pigtail Single Mode
